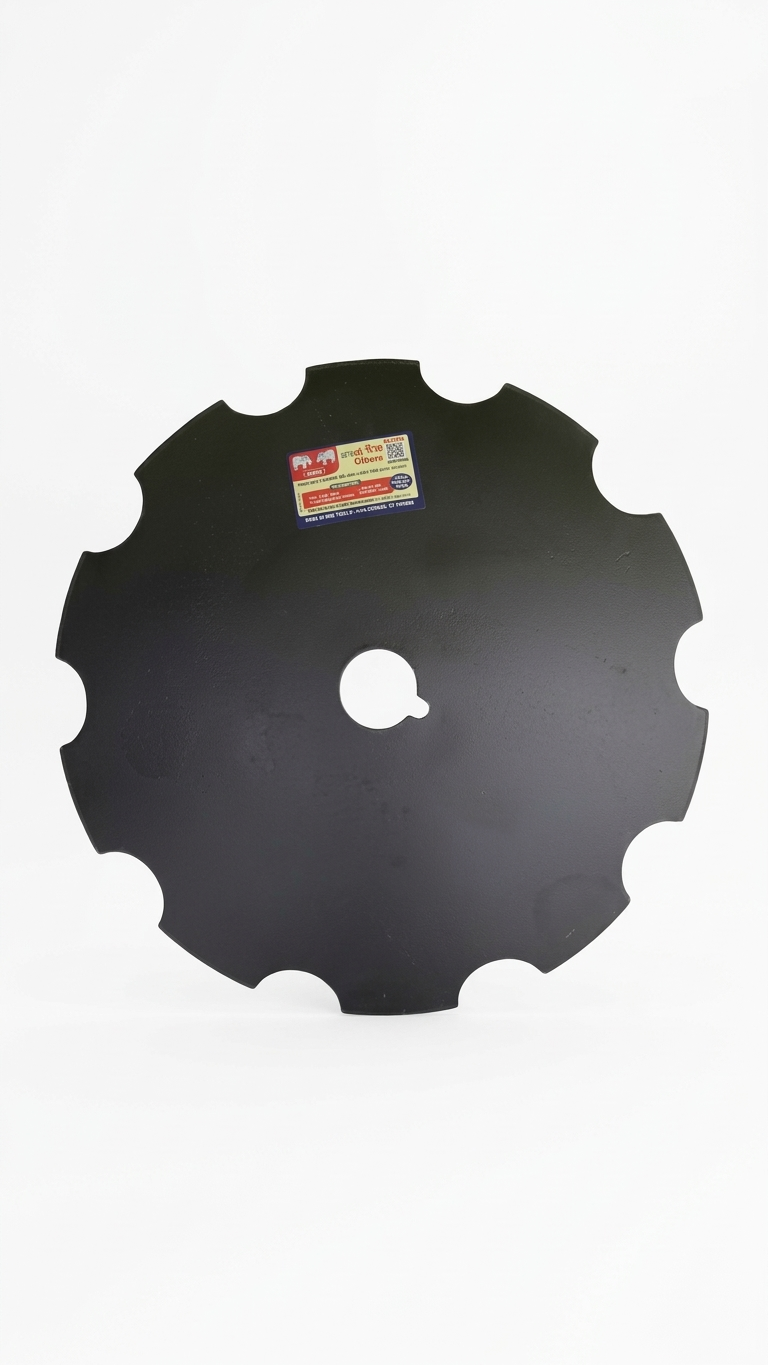

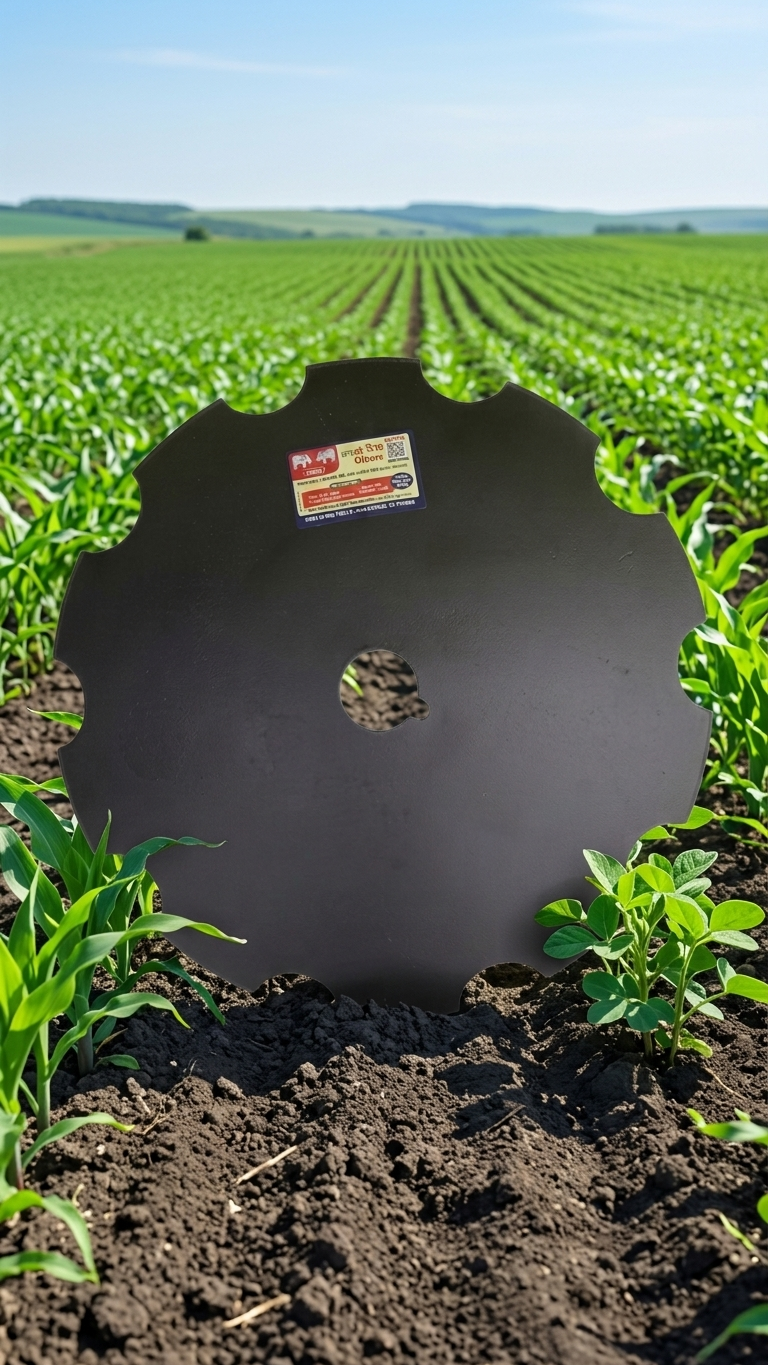

Notched Disc Blade
The Notched Disc Blade is a high-performance agricultural component designed for disc harrows and other tillage implements. Featuring precision-cut notches along the outer edge, it provides superior soil penetration, improved residue cutting, and enhanced gripping action in tough field conditions.
The Notched Disc Blade delivers aggressive cutting action, improved field efficiency, and long-lasting durability, making it an essential component for modern agricultural tillage equipment.
( Plain, Notched , conical , Flat center)
Diameter (inches) | Diameter (mm) | Thickness (mm) | Center Hole(mm) | Concavity (mm) | Weight (KG) | Material |
18 | 460 | 3.0-4.0 | 25-65 | 45 | 4.0-5.0 | High Carbon/Boron |
20 | 510 | 3.5-5.0 | 25-65 | 56 | 5.0-8.0 | High Carbon/Boron |
22 | 560 | 3.5-5.0 | 25-65 | 68 | 7.0-1-10.0 | High Carbon/Boron |
24 | 610 | 4.0-6.0 | 25-65 | 81 | 9.5-14.5 | High Carbon/Boron |
26 | 660 | 4.0-8.0 | 40-90 | 98 | 12.0-24.0 | High Carbon/Boron |
28 | 710 | 4.5-8.0 | 40-100 | 102 | 14.0- 28.0 | High Carbon/Boron |
